Innovation drives development Technology forges future

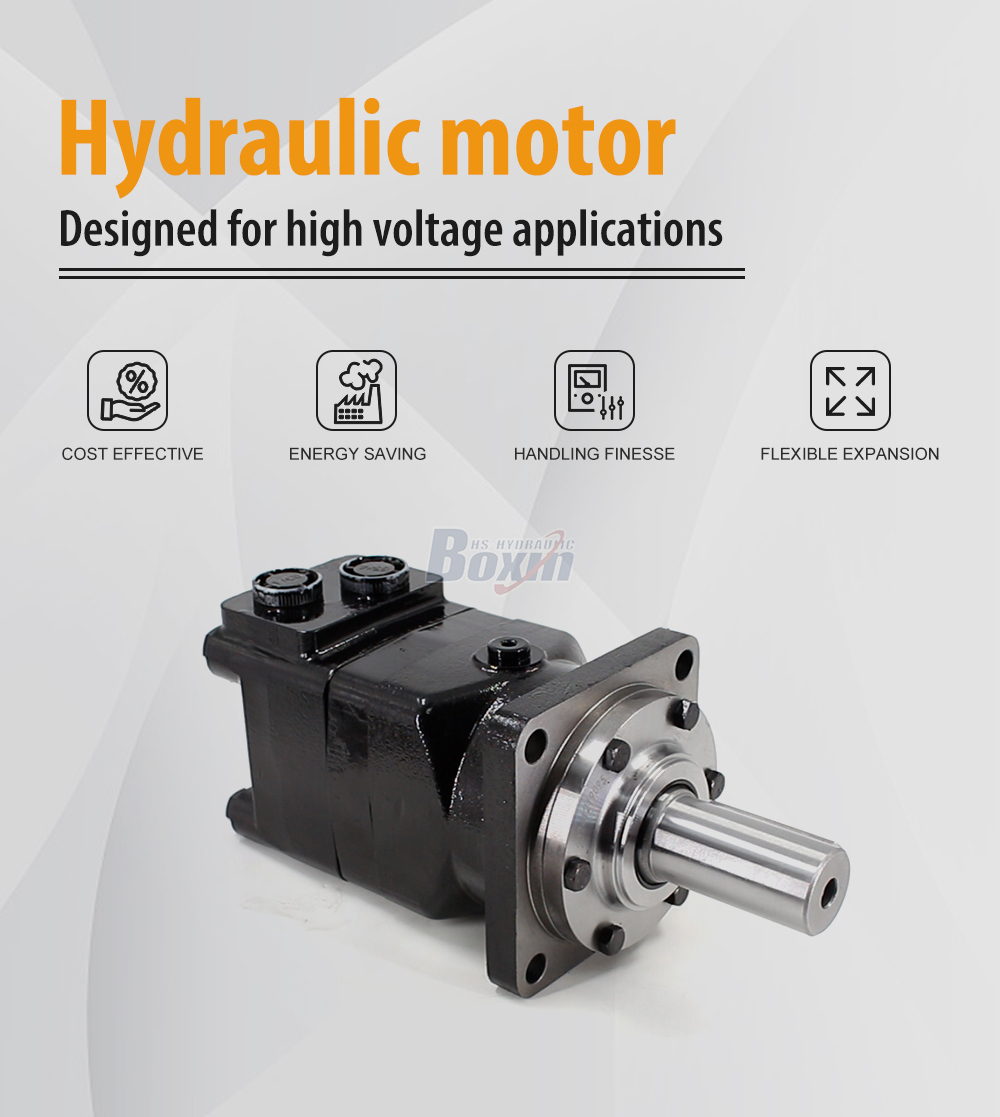

The BMT400 is a high-performance orbital hydraulic motor designed for heavy-duty industrial and mobile applications. With a 400cc displacement and 1081 Nm torque, it provides reliable power and efficiency for demanding machinery requiring low-speed, high-torque performance.
| BMT series Hydraulic Motor Parameters | |
|---|---|
| Rated Displacement | 400 cc/r |
| Rated Flow | 125 Lpm |
| Rated Speed | 154 RPM, 240 RPM, 305 RPM, 196 RPM, 154 RPM, 240 RPM, 380 RPM, 500 RPM, 625 RPM |
| Rated Pressure | 200 bar, 130 bar, 160 bar, 180 bar |
| Torque | 1081 Nm, 590 Nm, 730 Nm, 950 Nm, 1318 Nm, 1220 Nm, 1460 Nm |
The BMT400 series hydraulic motor utilizes advanced Geroler gear set design with disc distribution flow and high pressure. Key features include: 1. Higher efficiency and long life due to the advanced design of the disc distribution flow. 2. Robust shaft seal can bear high back pressure, allowing the motor to be used in parallel or series. 3. Specialized linkage-driver design for extended operating life. 4. High starting torque and stability at low speeds. This motor is ideal for rigorous environments, commonly used in agricultural machinery, construction equipment, and material handling systems where consistent power output and durability are paramount. We offer full customization, OEM services, and wholesale options for global distributors.
